UV LED Exposure Unit for Screen Printing: 10000DPI Precision, 30s Cycle & Zero Preheat

In screen printing prepress, your exposure unit defines both the fine detail of your finished prints and the efficiency of your production. As a professional screen printing equipment manufacturer based in Shenzhen, China, Subit builds industrial-grade UV LED exposure machines to solve classic pain points of traditional systems: long warm-up delays, heat-induced film distortion, and uneven edge quality.
Below is a concise technical breakdown of our flagship model – straightforward, actionable information to help you assess your next prepress upgrade.

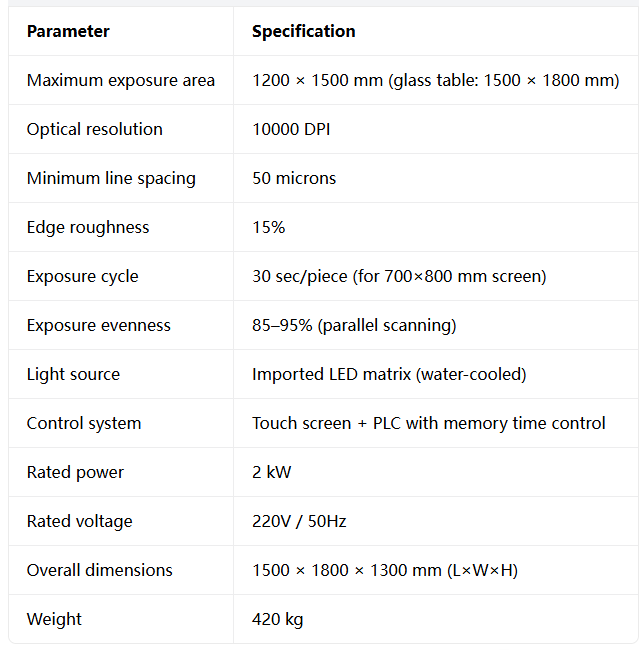

Core Technical Specifications

Key Performance Benefits
1. Cold LED Exposure = True 1:1 Pattern Reproduction
Our water-cooled LED array delivers cold UV light, keeping the exposure glass at room temperature during operation. Unlike heat-generating metal halide lamps, this eliminates film shrinkage and deformation – so every print matches your original artwork exactly, batch after batch.
2. Vacuum Adsorption for Crisp, Clean Edge Definition
The machine features a high-elasticity imported blanket with strong vacuum suction. It creates bubble-free, tight contact between film and screen mesh, preventing light diffusion and delivering sharp edges – even for ultra-fine lines and small halftone dots.
3. Zero Preheat + Fast Cycles = Higher Throughput
No warm-up time is required: start exposure immediately after power-on. Combined with a 30-second cycle for standard 700×800 mm screens, this cuts idle time dramatically and boosts daily output – ideal for fast-turnaround jobs and high-volume production.
4. Uniform Scanning Exposure Across the Full Screen
Parallel scanning technology delivers equal light energy at every position. With 85–95% exposure evenness, you get consistent emulsion curing from center to edge, with no faded borders or uneven hardness.
Request Your Custom Solution
Whether you need a standard unit or a custom-sized system for graphic, textile, industrial or specialty screen printing, Subit’s engineering team can tailor the solution to your screen dimensions and production volume.
**Contact our team today** to get a full technical datasheet, competitive pricing, or professional consultation on upgrading your prepress workflow.
