Automatic First Article Inspection Machine: Cut SMT FAI Cycle & Eliminate Manual Errors

First Article Inspection (FAI) is the foundational quality gate for every SMT production run. Yet manual FAI workflows remain a major bottleneck for most PCB assembly plants: they drain labor hours, carry high human error risk, and lack traceable data for continuous process improvement.
As a professional SMT inspection equipment manufacturer based in Shenzhen, Subit delivers a robust **automatic first article inspection machine** built to solve these exact pain points. Our FAI system accelerates first article verification, reduces quality escape risks, and gives you full data control over your production quality.
Core Detection & Measurement Capabilities
Our machine supports full inspection of SMT furnace-front PCBs (solder paste boards, pertinax boards, and red rubber boards), with automatic blank position scanning and verification:
- Component electrical testing: Integrated LCR electric bridge measures resistance, capacitance and inductance; identifies diode polarity and validates LED illumination.
- PCB defect detection: Catches common assembly faults including excess solder, missing parts, wrong components, reversed polarity, flipped parts, offset and rotation.
- Data-level validation: Flags BOM consumption errors, duplicate positions, and missing/extra XY coordinate definitions.
Precision & Throughput Specs
Engineered for high-mix, high-volume SMT environments:
- Average detection speed: 3 seconds per component
- Test frequency range: 50Hz ~ 100KHz
- Basic measurement precision: 0.05%
- Minimum measurement resolution: R 0.05Ω, C 0.1pF
- Wide measurement range to cover all standard SMT component specifications
Smart Programming & Data Management
Minimize setup time and simplify operation with intelligent built-in software:
- Fast import of BOM tables and XY coordinates, with automatic bitmap matching
- Auto-extraction of component specifications from material descriptions
- Supports double-side coordinate import for single-side inspection workflows
- Automatically identifies and labels blank positions on the board
- Full SPC process control: complete test data logging, with Excel and PDF report output
- Test scenario playback function for full traceability and root cause analysis
- Optional server mode: centralized database for unified FAI data management across your facility

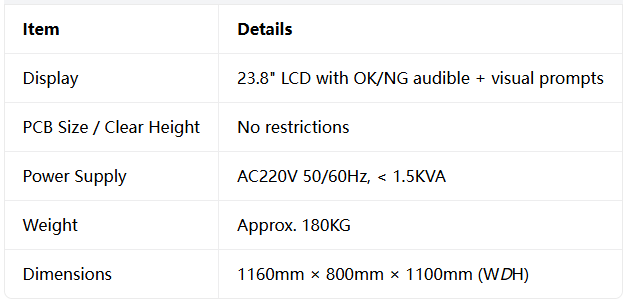

Equipment Specifications

Why Partner With Subit
Subit is a Shenzhen-based manufacturer focused exclusively on SMT inspection and testing solutions for the global electronics manufacturing industry. Our automatic first article inspection machines are field-proven by hundreds of PCB assembly factories worldwide, with design rooted in real production pain points.
We stand behind our equipment with full end-to-end support: installation guidance, operator training, and long-term technical service to ensure maximum uptime and ROI for your production line.
