Precision Screen Stretching Machine: The Key to Consistent Printing Quality

In screen printing, tension uniformity directly determines registration accuracy, ink consistency, and yield—especially in PCB, LCD, photovoltaic, and high-end textile applications. A professional screen stretching machine eliminates human error and provides a repeatable, stable foundation for every job.

Why Tension Accuracy Is Non‑Negotiable
Uneven tension causes pattern shift, mesh distortion, broken circuits, or film stress—problems that lead to scrap and rework. For high‑precision work, tension tolerance must be within ±0.5N. Machines with closed‑loop feedback and synchronous stretching (both X and Y directions) ensure uniform force across the entire mesh, preventing wrinkles and breakage.

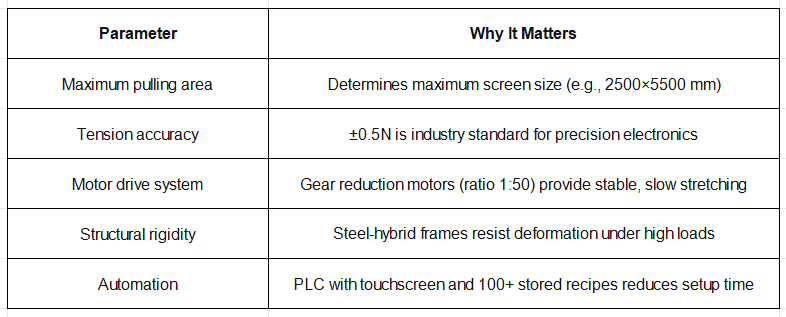

Key Parameters to Look For

What Makes a High‑Performance Stretcher?

Closed‑loop tension control – Real‑time sensors adjust tension dynamically, eliminating operator guesswork.
Robust clamping – Pneumatic self‑locking clamps prevent mesh slippage even at extreme tension.
Intelligent presets – One‑click parameter recall for different mesh types, cutting changeover time.
Synchronous stretching – Balanced force on all four sides, with corner buffers to avoid stress concentration.

Applications Across Industries

Photovoltaics – High‑tension mesh for solar cell electrodes (affects conversion efficiency).
Electronics/PCB – Fine mesh for circuit boards, touch screens, and displays.
Textile & glass printing – Consistent tension for multi‑colour registration.
Optical film lamination – Micron‑level accuracy to prevent light leakage.
Choosing Your Equipment – Quick Checklist
Tension stability over long runs
Durable construction with minimal maintenance
User‑friendly interface (reduces operator training)
Energy‑efficient design (380V/50Hz, ~5kW total power)
Reliable after‑sales support and spare parts availability

About SUBIT

Shenzhen Subit Technology Co., Ltd. (est. 2014) is a specialised manufacturer of screen stretching and electronic printing machinery. Our equipment features:
±0.5N tension accuracy with proprietary “Approach Bridge Law” balancing technology
PLC intelligent control storing up to 100 parameter sets
High‑strength steel‑hybrid structure for long‑term rigidity
Pneumatic self‑locking clamps and servo/SPC control (error within 2 microns)
Serving over 200 screen makers in China and exporting to Southeast Asia, Europe, and beyond, SUBIT machines are trusted for precision and reliability.

Final Takeaway

Investing in a high‑precision screen stretcher isn’t an expense—it’s the foundation for consistent quality, less waste, and higher profits. Choose a machine that delivers repeatable tension accuracy, robust construction, and smart automation to stay competitive in today’s demanding manufacturing environment.
