SMT Squeegee Blade Cleaning Machine

Why Every SMT Line Needs an Automatic Squeegee Blade Cleaning Machine

Introduction: The Hidden Bottleneck in Your SMT Line

In high-precision SMT manufacturing, printing squeegees accumulate solder paste, flux residues, and adhesive contaminants after continuous printing cycles. Unclean squeegees are a leading cause of printing defects—uneven tin deposits, bridging, missing solder, and blurred circuit patterns that directly impact PCBA yield rates.
Traditional manual wiping and solvent soaking are time-consuming, inconsistent, and risk damaging precision squeegee edges. For manufacturers serious about quality and throughput, an automatic squeegee blade cleaning machine is no longer optional—it's essential.

The Fully Automated Cleaning Workflow

Modern automatic squeegee cleaning systems operate through a complete, integrated process that eliminates guesswork and labor variability:
360° Rotation – The squeegee holder rotates continuously during cleaning, ensuring all surfaces and edges receive equal exposure to the cleaning solution.
Pre-Heated Ultrasonic + Spray Cleaning – The pre-heated cleaning solution first attacks contaminants through ultrasonic vibration, which dislodges residues from microscopic crevices, combined with high-pressure spray that provides kinetic energy for thorough removal.
Spray Rinsing – A dedicated rinse cycle with DI water flushes away dissolved contaminants.
Hot Air Drying – The final stage uses forced hot air to dry the squeegee completely, making it ready for immediate reinstallation.
This closed-loop, automated sequence transforms squeegee maintenance from a tedious manual chore into a consistent, repeatable process.

Full-Process Visualization: See What's Happening

A common concern among operators is whether the cleaning process is actually working. Our machine addresses this with a visual tempered glass window built into the automatic door. The entire cleaning cycle—from ultrasonic agitation to spray rinsing to hot air drying—is clearly observable in real time. This transparency builds operator confidence and allows for immediate visual verification of cleaning effectiveness.

Scientific Nozzle Design (Patented)

One of the biggest challenges in squeegee cleaning is eliminating blind spots—areas where spray cannot reach due to poor nozzle placement. Our patented nozzle design solves this with super and middle spray arms that distribute cleaning solution evenly across the entire squeegee surface. The spray arms and nozzles are detachable for easy maintenance and replacement, ensuring long-term cleaning consistency.

Independent Cleaning & Rinsing Filtration Systems

Cross-contamination between the cleaning and rinsing phases can compromise final cleanliness. Our machine features online independent built-in filtration systems for cleaning and rinsing respectively:
Dedicated electric pumps and separate pipelines for each stage
Solvent recycling that prevents mixing of cleaning solution and rinse water
This design extends the service life of rinse water and reduces overall solvent consumption
The result is lower operating costs and more consistent cleaning outcomes.

Durable Stainless Steel Construction

SMT cleaning environments involve acidic and alkaline solutions that can corrode standard materials over time. Our machine features a full stainless steel body that resists chemical attack from all common cleaning solutions. This robust construction ensures longevity, reduces maintenance frequency, and maintains a professional appearance even after years of service.

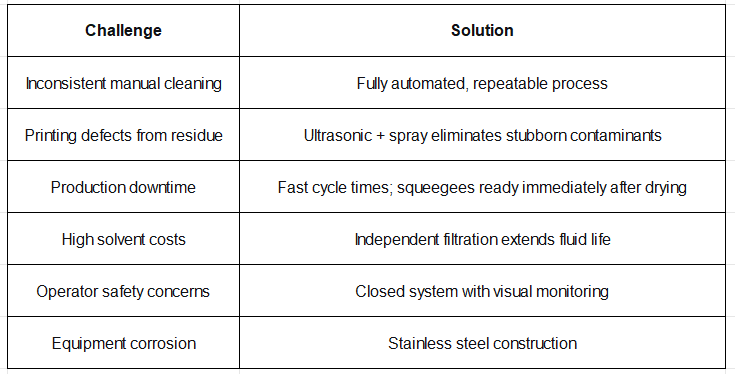

Why This Matters for Your Production

Final Thoughts

An automatic squeegee blade cleaning machine is a straightforward investment that pays dividends through improved print quality, reduced defect rates, extended squeegee life, and lower labor costs. The combination of 360° rotation, ultrasonic + spray cleaning, independent filtration, and stainless steel durability creates a cleaning solution that SMT manufacturers can rely on day after day.
Ready to eliminate squeegee-related defects from your SMT line? Contact us to learn more about our automatic cleaning solutions.
