Semi-Auto Stencil Printing Squeegee Blade Inspection Machine – Smart Choice for SMT Quality Control

In the fast-paced world of SMT electronics manufacturing, stencil printing quality directly determines product yield. According to industry data, up to 60% of SMT defects originate from the stencil printing process, and approximately 30% of these are directly linked to squeegee blade issues. Even a microscopic deformation of 0.05mm can cause uneven solder paste deposition, bridging, or insufficient solder. This is why a reliable semi-auto stencil printing squeegee blade inspection machine has become an essential quality control tool for PCB assembly lines.

Why Squeegee Blade Inspection Matters

In SMT production, the squeegee blade is responsible for spreading solder paste evenly across the stencil apertures. A worn, deformed, or damaged blade disrupts this precision, leading to costly rework and scrap. Traditional manual inspection methods—visual checks or feeler gauges—rely heavily on operator experience, resulting in a misjudgment rate of 15%–20% and failing to meet modern precision requirements.

What a Semi-Auto Squeegee Inspection Machine Delivers

A semi-automatic squeegee inspection machine is a dedicated device designed to detect wear, deformation, edge damage, and surface defects in stencil printing squeegees. Here’s what sets a quality machine apart:
High-Precision Inspection Platform – Equipped with a Class 00 grade marble platform (tolerance ≤0.005mm) that provides a stable, deformation-resistant surface for accurate defect detection.
Intelligent Detection System – PLC-controlled with touchscreen operation, adjustable LED backlighting, and precision pressure sensors that simulate real printing conditions (2–20kg adjustable).
Comprehensive Defect Identification – High-resolution imaging and optimized lighting capture even the smallest defects such as nicks, wear, burrs, and uneven edges that manual inspection might miss.
Data Management & Traceability – Supports inspection data archiving and USB export, with optional MES system integration for full-process traceability.

Cost-Effective Quality Assurance

Unlike fully automatic systems that require higher upfront investment and complex integration, semi-automatic squeegee inspection machines offer an ideal balance of precision, efficiency, and cost-effectiveness. They are particularly suitable for small to medium-sized SMT factories, as well as large production lines looking to optimize quality control without breaking the budget. With low energy consumption, compact footprint, and user-friendly operation, these machines can be flexibly deployed next to the production line or in the lab.

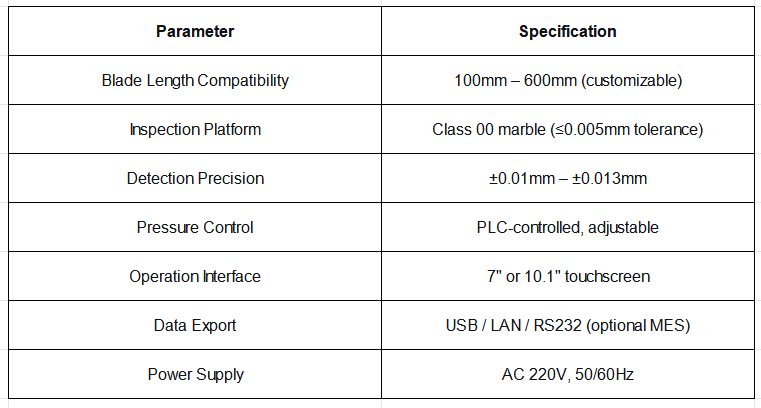

Key Specifications to Look For

When evaluating a semi-auto stencil printing squeegee blade inspection machine, pay attention to these core parameters:

The Bottom Line

Investing in a semi-auto stencil printing squeegee blade inspection machine is not just about catching defects—it's about preventing them. By detecting blade issues before they impact production, manufacturers can reduce defect rates, minimize downtime, extend blade life, and ultimately improve overall equipment effectiveness (OEE). As the SMT squeegee and blade market continues to grow steadily, driven by increasing demand for precision in electronic assembly, having the right inspection solution in place is no longer optional—it's a competitive necessity.
Contact us today to learn how our semi-auto squeegee inspection solution can help you achieve zero-defect stencil printing and take your SMT quality control to the next level.
