Stencil Inspection Machine: Boost SMT Yield with Automated Quality Control

Stencil quality directly determines solder paste printing accuracy and PCB assembly yield in SMT production. Manual inspection suffers from human error, low efficiency and inconsistent standards, leading to costly rework, material waste and downtime. A professional stencil inspection machine has become essential for electronics manufacturers to standardize quality control and optimize production performance.
Core Functions of a Reliable Stencil Inspection Machine
1. Full-Coverage Optical Defect Detection
Equipped with high-resolution vision systems, the machine automatically identifies blocked apertures, residual foreign bodies, surface glitches and cleaning effects on stencils. High-end models detect micro-defects as small as 80μm×80μm, fully supporting fine-pitch SMT processes.
2. High-Precision Tension Testing
Built-in tension meters perform multi-position free testing with ±1N/cm accuracy and 0–60N measuring range, verifying stencil tension uniformity, tracking tension decay and supporting proactive stencil maintenance.
3. Smart Software & Traceability
Offline testing mode that does not interrupt live production
Template image processing for fast, consistent defect comparison
QR code management and inspection record search for full lifecycle traceability
Tiered user authority for standardized operation

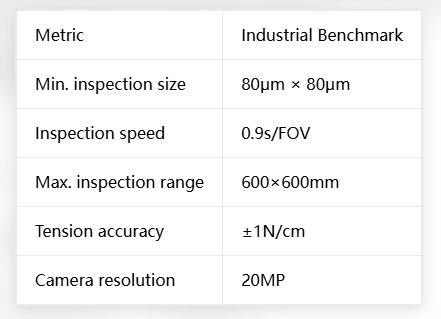

Key Specifications to Evaluate

Prioritize machines with servo motor + PLC drive systems and stainless steel frames for long-term stability in industrial environments.
SUBIT: Your Trusted Stencil Inspection Solution Provider
Founded in 2014 and based in Shenzhen, SUBIT Technology is a specialized manufacturer of electronic printing and chemical industry equipment with 10 years of industry experience. Our flagship SBT-JC1009SA SMT stencil inspection machine delivers high-precision detection, fast throughput and stable performance, engineered for low energy consumption, easy operation and high efficiency.
Backed by an experienced engineering team and full in-house precision processing capabilities (CNC, stamping, welding, electroplating, etc.), we provide both standard and customized inspection solutions.
Quick Tips to Maximize ROI
Inspect stencils upon receipt, during production cycles and after each cleaning
Track tension data over time to predict stencil service life
Integrate inspection records into your quality management system for compliance
Pair with squeegee blade inspection and screen stretching equipment for full process optimization
Final Note
An automatic stencil inspection system eliminates manual inspection inconsistencies, reduces scrap rates and extends stencil lifespan. For electronics manufacturers aiming to improve yield and control costs, it is a high-return investment for long-term production stability.
