Subit: Your Trusted Partner for Precision Stencil Inspection Solutions in SMT Manufacturing

In the fast-paced world of Surface Mount Technology (SMT), the quality of solder paste printing directly determines the final yield of PCB assembly. Industry statistics reveal that approximately 30% of all SMT printing defects originate from stencil imperfections. As the "quality gatekeeper" of the SMT supply chain, stencil inspection machines have become indispensable equipment for ensuring production reliability.
Headquartered in Shenzhen, China's electronics manufacturing hub, Subit specializes in providing tailored stencil inspection solutions for both stencil manufacturers and SMT assembly plants. Our comprehensive product line addresses the distinct needs of these two critical segments of the SMT ecosystem.
Stencil Manufacturer-Specific: Full-Process Production Inspection Based on GERBER Files
For stencil manufacturers, the core requirement is to verify compliance with customer PCB design files (GERBER/LMD) before shipment, eliminating any manufacturing defects that could lead to costly rework or customer complaints. Subit's production-grade stencil inspection machines serve as the final quality checkpoint throughout the entire stencil manufacturing process, from raw material incoming inspection to finished product delivery.
Key Features and Inspection Capabilities
GERBER File Import and Comparison: Our machines support standard GERBER and LMD file formats, automatically generating theoretical standard models as inspection benchmarks. Programming takes only 3-5 minutes, enabling rapid switching between different stencil specifications.
Comprehensive Aperture Accuracy Detection: With a precision of ±10μm and Gage R&R < 5%, our equipment accurately measures aperture size, area, and positional offset. It reliably identifies critical defects such as extra holes, missing holes, aperture deformation, and edge burrs, providing 100% coverage of all apertures on the board.
Advanced Specialized Inspection: For high-end applications like semiconductor packaging, our machines support stepped stencil thickness measurement and hole wall flatness observation. Optional tension detection modules with ±1N·cm precision ensure stencil tension meets factory standards.
Technical Advantages
Subit's stencil manufacturer-grade inspection machines feature a 00-grade marble platform and fully cast gantry structure, naturally aged to release internal stress. Equipped with British Renishaw linear encoders and German IDS industrial cameras (6.9μm resolution), they deliver exceptional long-term stability. All inspection data is automatically recorded in detailed reports, supporting full traceability to meet customer audit requirements. Our machines are compatible with stainless steel, nickel alloy, and other stencil materials, with a minimum detectable aperture size of 30×30μm, covering consumer electronics, automotive electronics, and semiconductor applications.
SMT Factory-Specific: Usage Process Control Without GERBER Files
For SMT assembly plants, the primary need is to monitor stencil condition throughout its entire lifecycle—from incoming inspection to regular maintenance and post-cleaning verification. Subit's usage-focused stencil inspection machines are designed to operate without original design files, focusing on detecting defects that arise during production use.
Key Features and Inspection Capabilities
File-Free Rapid Inspection: New stencils can be quickly set up using our one-click template learning function, which captures the initial stencil state as the inspection standard. No professional CAD skills are required.
Usage Defect Detection: Our machines excel at identifying solder paste residue, dust, and fibers inside apertures, as well as partial or full blockages that cause insufficient solder or cold joints. They also detect post-cleaning burrs and hole wall damage that lead to solder bridging and smearing.
Cleaning Effectiveness Verification: After ultrasonic or water-based cleaning, our equipment quickly assesses stencil cleanliness to validate cleaning process effectiveness and prevent cross-contamination between production runs.
Technical Advantages
Subit's SMT factory-grade inspection machines deliver exceptional speed, inspecting a standard 650mm×550mm stencil in approximately 50 seconds to meet high-frequency production line demands. Their compact design allows for easy integration next to stencil cleaning machines or standalone placement. With full MES system connectivity, they enable real-time stencil status monitoring and data-driven production management. By simplifying the GERBER comparison module and focusing on core usage defects, our machines offer outstanding cost-performance for SMT facilities.

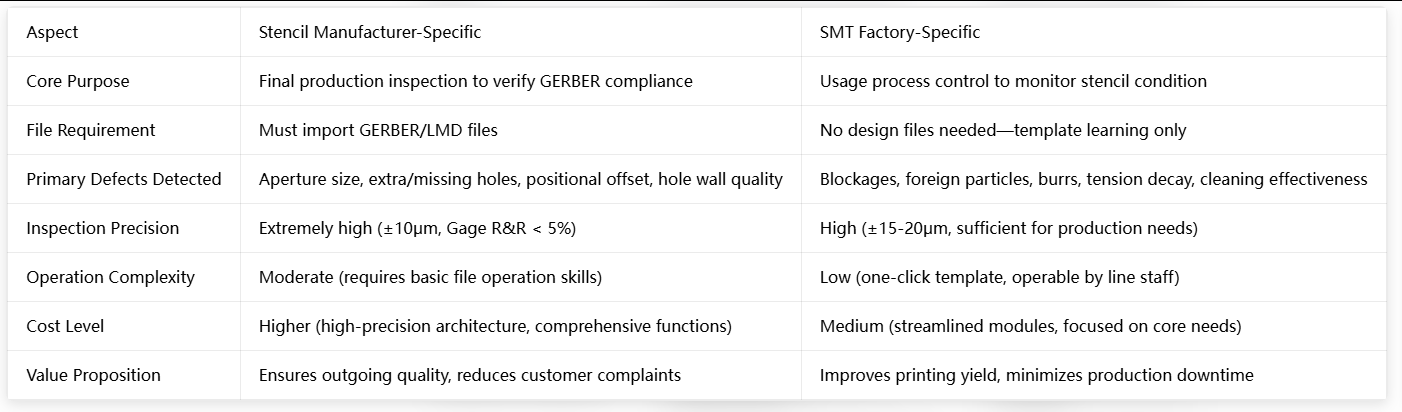

Core Differences Between the Two Solutions

Industry Trends and Future Outlook
As SMT technology advances toward miniaturization and higher precision—with components as small as 01005 and Mini LED packages requiring apertures below 50μm—manual inspection has become increasingly inadequate, with error rates ranging from 20% to 30%. The global stencil inspection equipment market is experiencing rapid growth, with China's market alone expected to exceed 2.6 billion RMB in 2025, growing at an annual rate of over 14%.
Subit is at the forefront of technological innovation in this field:
AI-Powered Inspection: Our latest machines integrate advanced AI vision algorithms that automatically classify defect types, achieving over 99% detection accuracy and reducing manual review requirements.
Data Interconnectivity: All Subit inspection machines support the SECS/GEM protocol, enabling seamless integration with MES and SPI systems for comprehensive data analysis and root cause tracing of printing defects.
Multi-Function Integration: We are developing integrated solutions that combine stencil inspection with squeegee inspection and thickness measurement, reducing equipment investment costs for our customers.
Why Choose Subit?
As a leading SMT equipment manufacturer based in Shenzhen, Subit combines deep industry expertise with cutting-edge technology to deliver reliable, cost-effective stencil inspection solutions. Whether you are a stencil manufacturer requiring high-precision GERBER-based verification or an SMT assembly plant needing fast, user-friendly in-process inspection, we have the right product for your needs.
Our commitment to quality is reflected in every aspect of our business—from rigorous component selection to comprehensive after-sales support. With a global customer base spanning Asia, Europe, and North America, Subit is dedicated to helping electronics manufacturers worldwide improve production efficiency, reduce defect rates, and achieve greater success in the competitive global market.
For more information about Subit's stencil inspection solutions, please visit our website or contact our international sales team.
