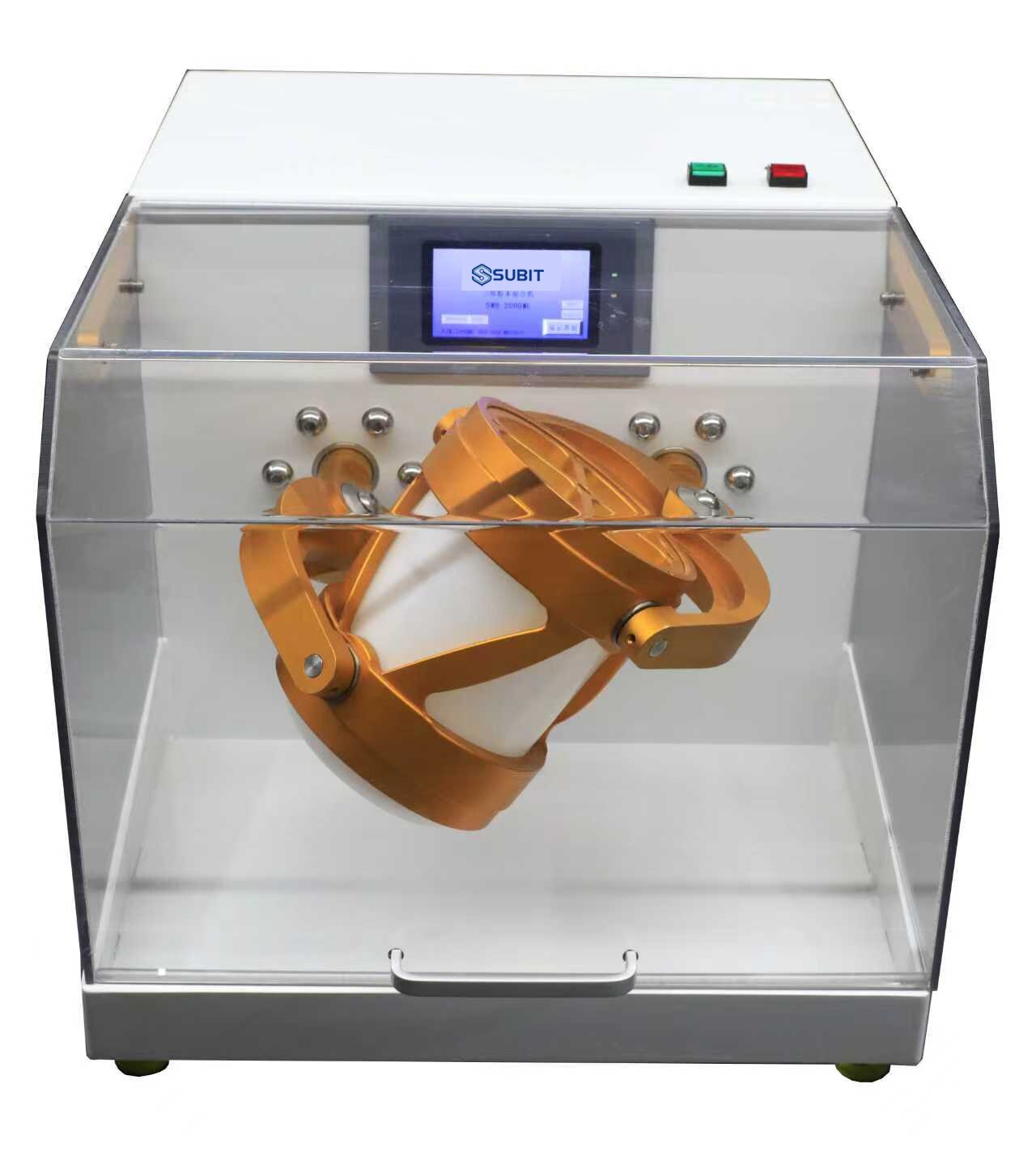

SWH-2000ML Laboratory Powder Mixing Machine
Laboratory powder mixer, also known as a 3-dimensional mixer or oscillating mixer, is primarily designed for mixing powdered materials with varying densities, particle sizes, and requiring high uniformity. The mixing process occurs within a fully enclosed container, allowing for the replacement of different containers to achieve optimal volume control. Experiments involving different formulations can be conducted using separate containers to prevent cross-contamination, while the containers are easy to clean.
Model Number: SWH-2000ML
Features:
-The mixing cylinder can accommodate containers of various sizes and shapes, ranging from test tubes to 2-liter mixing tanks.
-The container is rapidly secured using a dedicated fixture.
-The container can hold a standard 2-liter cylinder, and with the use of clamps, smaller mixing tanks can also be employed.
-It features a continuous speed adjustment range of 0–100 RPM with user-friendly interface, touchscreen settings, and easy operation.
Each program consists of two steps (forward and reverse), allowing you to set speed and duration per step and cycle through up to 20 cycles.
Its unparalleled control delivers perfectly homogeneous product mixtures.
Specification:
Model | SWH - 2000ML |
Use Application | Mixing of metal or non-metal powders |
Volumetric standard | 2200ML |
Maximum throughput | 2000 mL (maximum capacity: 6 kg) |
Small Container Extension | Use a adapter sleeve or insert a standard stopper to secure and fix. |
Speed | Stepless speed adjustment from 5 to 100 rpm, adjustable according to user requirements (e.g., set to 1 rpm) |
Device Features | Easy to maintain, truly achieves dust-free production, convenient for cleaning, and ensures uniform mixing. |
Set Time | Forward and reverse cycles: 2 steps, each lasting 1–260 minutes (total 520 minutes), with a precision of 1 second, repeatable up to 20 times; you can set any duration from 1 to 10,000 minutes |
Parameter Storage Capacity | 10 groups |
Control System | Human-computer interaction, Chinese interface, touchscreen operation |
Operational principle | Rotation, translation, and inversion of three-dimensional spatial movements |
Machine returns to origin | After the machine stops automatically, it will automatically return to the origin and stop again. |
Security guard | A bulletproof glass-grade protective cover with automatic locking mechanism to prevent finger injury caused by material rotation during discharge; operation stops immediately upon opening the cover. |
Applicable temperature and humidity | 10~40 ℃；20~60%RH |
Voltage | AC220V±5%；1 - Phase；50~60Hz |
External dimensions/Weight of the main unit | L500×W635×H430mm/35KG |
