Screen Stretching Machine | 0–60N Tension Control for Solar, PCB & LCD Printing

As a professional industrial screen printing equipment manufacturer based in Shenzhen, Subit designs and produces the LY2555 full automatic precision integral screen stretching machine for high-precision, high-tension mesh stretching processes. This machine serves high-demand sectors including solar photovoltaics, PCB electronics, LCD touch screens, glass printing, advanced electronics, ceramic printing, and textile dyeing & printing.
Compatible Mesh Materials
It supports high-strength stretching for all straight-pull screen meshes, including polyester mesh, nylon mesh, and stainless steel wire mesh.
Core Technical Highlights
1. Ultra-Accurate Tension Performance
With an adjustable tension range of 0–60N and a maximum tension error of just ±0.5N, the machine adopts precision 2.5D detection equipment to calculate the optimal force parallel distance between cylinder pressure and mesh traction friction. The result is slip-free, gap-free stretching with zero dislocation or deformation of the mesh fabric.
2. Integral Self-Locking Stretch System
Built on a scientifically validated integral netting principle, the machine features a rotary lock cylinder with automatic self-locking function. Mesh locking is fast and convenient, with uniform force distribution and precise alignment. The machine body uses high-strength steel mixed material, paired with automotive-grade tapered drive components for stable performance and long service life.
3. PLC Intelligent Control with Memory Function
Equipped with a PLC microcomputer control system, intelligent memory and a user-friendly human-machine interface, the machine delivers accurate, stable and efficient stretching motion. X/Y axis stretching travel is displayed at micron-level precision. Stretching parameters can be saved and recalled for different mesh types and specifications, reducing setup time and maximizing production efficiency.
4. Bridge-Type Balance Stretching Design
Based on the "Bridge Law" stretching concept, the machine automatically buffers balancing force at all four corners during simultaneous X and Y axis stretching. Tension deviations are quickly compensated through a bridge-style mitigation system, gradually reaching the target tension. This design minimizes the risk of mesh tearing or snapping even under ultimate tension loads.
5. Safety, Efficiency & Custom Flexibility
The machine is fitted with multiple operation safety protections, with optimized circuit and air circuit layouts for low energy consumption. Custom sizes are available to match industry-specific requirements.
Additional practical features include digital display clamps, net pockets and foot switches — no mesh cutting is needed for initial placement, reducing labor input. For tension requirements ≤40N, an optional silent automatic air pressure system is available. The machine also comes with an automatic top net system with freely adjustable lifting stroke and air source pressure.

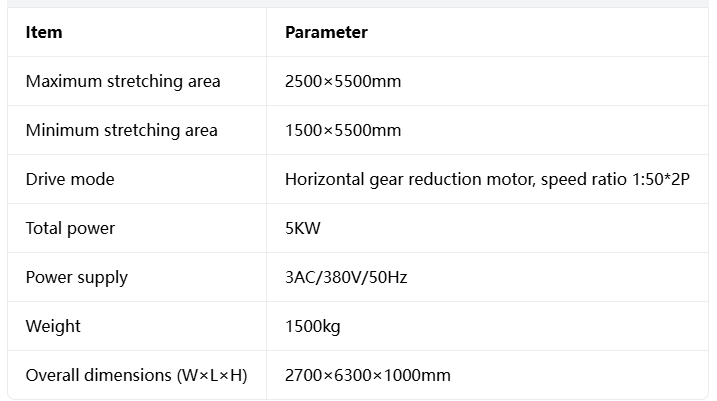

Key Specifications

Request a Quotation
If you need a reliable mesh stretching solution for precision printing production, or require custom sizing and configuration for your specific mesh materials and tension needs, contact the Subit technical team today for a detailed quote and professional technical guidance.
