Why Your SMT Printing Yield Is Dropping? The Squeegee Blade Cleaning Solution You Can't Ignore

In surface mount technology (SMT) assembly, the solder paste printing process is widely recognized as the leading contributor to manufacturing defects. Industry studies indicate that over 60% of SMT defects trace back to issues during this critical stage. While many manufacturers focus on stencil cleaning and printer calibration, one often-overlooked culprit sits right at the point of contact—the squeegee blade.
The Hidden Cost of Dirty Squeegee Blades
After continuous printing cycles, squeegee blades accumulate solder paste, cured adhesive, flux residue, and ink. When left uncleaned, these contaminants lead to:
Uneven paste application and inconsistent deposition
Bridging, insufficient solder volume, and circuit pattern blurring
Stencil wear and accelerated blade degradation
Reduced PCBA yield and increased rework costs
Traditional manual wiping with lint-free cloths and solvents is time-consuming, inconsistent, and risks scratching precision blade edges. Even a blade edge imperfection of just 0.1mm can cause paste streaking or uneven scooping. For high-volume production lines, relying on manual methods is simply no longer viable.
The Smarter Approach: Automated Squeegee Blade Cleaning
This is where an SMT squeegee blade cleaning machine transforms your production floor. These systems automate the entire wash-rinse-dry cycle, delivering consistent, repeatable results without manual intervention.
At Subit, we've engineered our SMT Squeegee Blade Cleaning Machine with features that address the real pain points of modern SMT facilities:
1. Fully Automated 360° Cleaning
The machine rotates products 360 degrees, with pre-heated cleaning solution performing ultrasonic and spray cleaning, followed by spray rinsing and hot air drying. Simply load the blades, set parameters, and press start—the machine handles the rest.
2. Independent Cleaning & Rinsing Systems
Cross-contamination between cleaning and rinsing processes is a common issue in inferior systems. Our design features dedicated electric pumps, separate pipelines, and solvent recycling to prevent this entirely. This approach enhances rinse water service life and reduces solvent consumption—lowering your operating costs.
3. Patented Nozzle Design
Scientific spray arm distribution completely resolves cleaning blind spots, with detachable spray arms and nozzles for easy maintenance. Multi-angle high-pressure flushing thoroughly removes dried solder paste, red glue, and conductive adhesive without damaging blade surfaces.
4. Three-Stage Filtration & Heating
The cleaning storage tank incorporates three-stage filtration with heating and liquid level monitoring. The rinse tank features two-stage filtration with independent heating. This closed-loop system ensures your solvent stays clean cycle after cycle.
5. Full-Process Visibility & Durable Construction
A visual tempered glass window allows operators to observe the cleaning process in real time. The entire stainless steel body resists acidic and alkaline cleaning solutions, ensuring long-term reliability in demanding production environments.

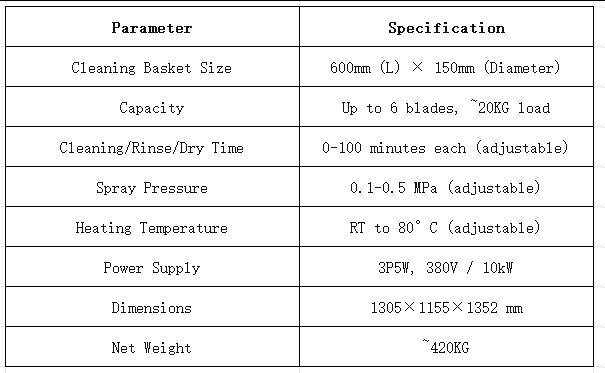

Technical Specifications at a Glance

Why Subit?
As a Shenzhen-based manufacturer with deep expertise in SMT cleaning equipment, Subit delivers solutions that balance performance, reliability, and cost-effectiveness. Our machines are built for the realities of high-mix, high-volume production environments—where downtime is expensive and quality is non-negotiable.
Ready to eliminate squeegee-related defects from your SMT line?
Contact Subit today for a consultation or to request a product demo.
