Achieve ±0.05mm Squeegee Grinding Accuracy – SUBIT’s Screen Printing Squeegee Glue Grinding Machine

In screen printing, the squeegee is the direct interface between ink and substrate. A dull or uneven squeegee edge leads to inconsistent ink deposition, ghosting, and premature blade failure. For printers handling fine-line graphics, PCB printing, or high-volume production, maintaining a precise squeegee edge isn’t optional—it’s the difference between profitability and waste.
That’s where a high-performance squeegee glue grinding machine becomes an indispensable asset.

Why Squeegee Grinding Matters

A properly ground squeegee delivers three critical benefits:
Print consistency – A uniform edge ensures even ink transfer across the entire print stroke.
Extended blade life – Regular precision grinding removes minor wear without excessive material loss, maximizing the usable life of each squeegee.
Defect reduction – Uneven edges cause "ink leakage" or "offset" phenomena that compromise print quality.

SUBIT’s Solution: Precision Engineered for Demanding Applications

Shenzhen SUBIT Technology Co., Ltd.—established in 2014 with over a decade of focused experience in electronic printing manufacturing equipment—offers a grinding machine built for accuracy, durability, and operator convenience.

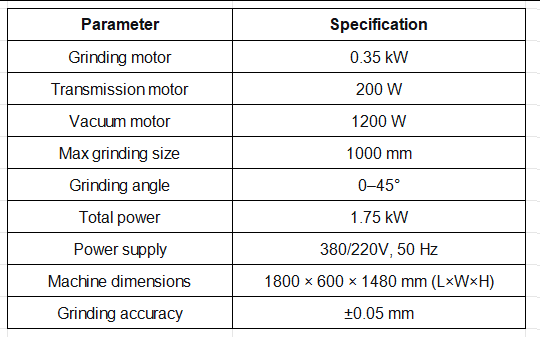

Key Specifications at a Glance

Design Features That Set It Apart

1.±0.05 mm Grinding Accuracy – Guided by precision rails, the machine achieves a grinding level accuracy of ±0.05 mm. At this tolerance level, you eliminate the microscopic irregularities that cause print defects in high-precision applications like PCB, semiconductor, and electronic component printing.
2. 0–45° Adjustable Grinding Angle – Different printing applications demand different blade geometries. The adjustable angle range allows operators to match the squeegee profile to specific print requirements—whether for fine-line graphics, heavy ink deposits, or specialty substrates.
3. Diamond Grinding Wheel with No-Pressure Design – The special grinding design uses a diamond wheel that applies no excessive pressure to the squeegee rubber. This prevents deformation and wave-like patterns on the blade surface, ensuring a consistently smooth edge.
4. Integrated Vacuum System – The 1200W vacuum motor captures grinding dust at the source, reducing airborne particulates in the workplace. This protects operator health and keeps the equipment clean for longer service life.
5. Simple Operation – The machine features a card-lock design for squeegee rubber positioning, adjusting for any deformation to ensure grinding quality. No specialized skills are required to operate the equipment effectively.
6. Versatile Compatibility – Works with both domestic and imported squeegee rubbers, and accommodates both mechanical and manual scraper types.

Grinding Best Practices

To get the most from your squeegee grinder:
Use a fine grinding wheel for routine maintenance to minimize material loss and keep the edge clean.
For heavy material removal, start with a coarser wheel, then finish with a fine wheel for a smooth edge.
Wait 24 hours after printing before grinding—inks and solvents need time to fully evaporate from the rubber.
Establish a preventive grinding schedule—consider grinding every 2–3 large production runs or after approximately 300 hours of operation.

Why Choose SUBIT?

As a specialized manufacturer of electronic printing-related machinery, SUBIT brings more than a decade of hands-on experience in the electronics manufacturing sector. Unlike general-purpose printing equipment suppliers, every product we develop is rooted in real-world manufacturing scenarios—ensuring our equipment solves the actual pain points of production floors.
Our squeegee grinding machine is part of a comprehensive portfolio that includes stencil inspection machines, squeegee blade inspection machines, and custom automation solutions for the electronics industry.
Ready to upgrade your squeegee maintenance process? Contact SUBIT Technology today to discuss how our precision grinding solutions can improve your print quality and reduce operating costs.
Shenzhen SUBIT Technology Co., Ltd. – Precision screen printing equipment, engineered for results.
