Manual Screen Stencil Inspection System: Reduce Printing Defects & Improve SMT Quality Control

In SMT manufacturing, stencil quality directly determines printing yield and product reliability. A manual screen stencil inspection machine is a cost-effective quality control solution for detecting aperture clogging, damage, misalignment and solder paste residue at an early stage. As a professional SMT equipment manufacturer based in Shenzhen, Subit delivers precision-built manual stencil inspection systems optimized for stable performance and flexible operation.

Core Technical Specifications

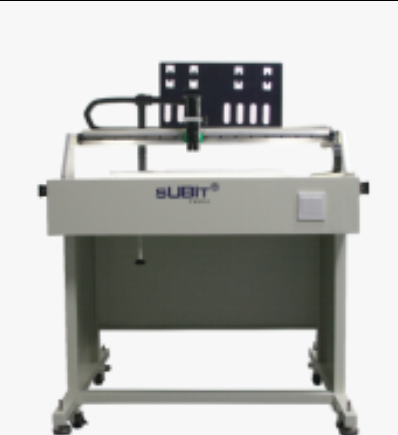

Subit manual stencil inspection machine adopts industrial-grade structure and high-definition optical system, covering full inspection demands for standard SMT stencils.
Frame & Light Box System
The machine frame is made of stainless steel for high rigidity, corrosion resistance and long service life in workshop environments.
Equipped with a customized energy-saving LED light source, paired with 12mm tempered white glass and ivory diffusion board, delivering soft, uniform and glare-free illumination to protect operators’ eyes during long-time work.
Countertop dimension: L900×W900×H950mm; supports maximum steel screen size of L800×W800mm, compatible with most mainstream SMT stencil specifications.
Overall dimension: L1050×W1100×H1450mm, net weight 80KGS, with a compact footprint suitable for standard production line layouts.
Guide Rail Module
Customized 900×900×200mm guide rail with effective travel of X:900mm, Y:900mm, Z:200mm, realizing full-coverage inspection without blind spots.
Manual control for X/Y/Z axes, enabling flexible and instant positioning to any target area, ideal for spot check and high-mix production.

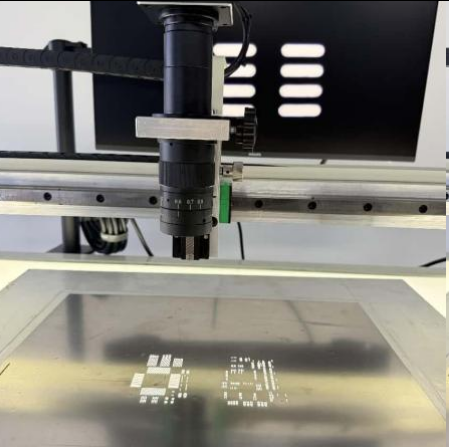

Z-axis integrated with CCD microscope camera for real-time imaging at any inspection position.
CCD Microscope & Display
200x optical magnification with built-in graduated scale, supporting precise dimensional measurement of apertures and defects.

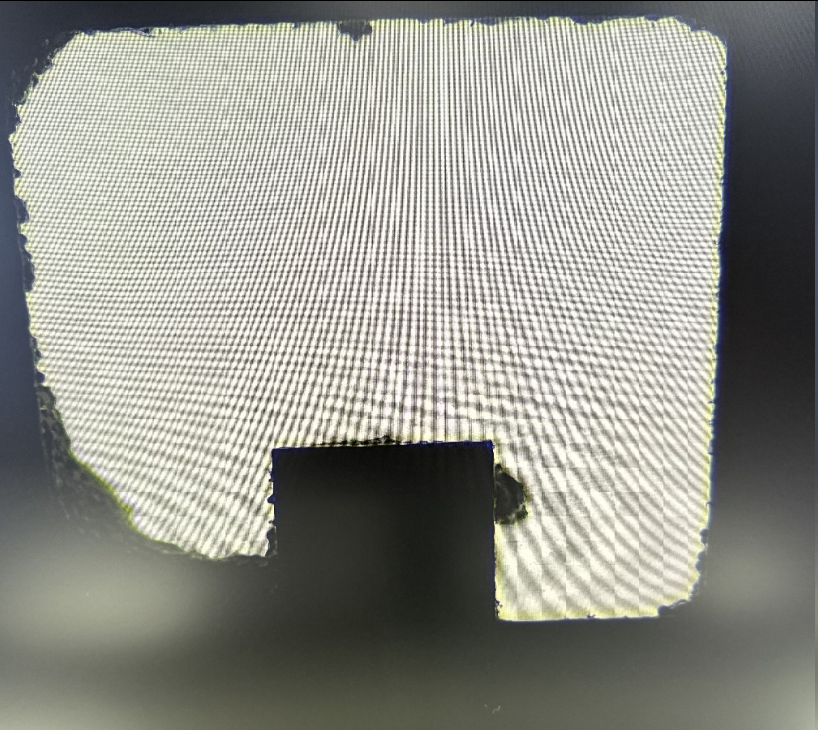

20 million pixel high-resolution CCD sensor, clearly capturing micro clogs, scratches and wall damages invisible to the naked eye.
24-inch HD display for real-time image presentation, helping operators make accurate quality judgments efficiently.

Key Advantages for SMT Production

Improve printing yield: Identify stencil defects before printing to reduce solder shortage, bridging and other common defects, lowering rework costs.
High flexibility: Manual control supports fast switching between stencils of different sizes, perfectly matching high-mix low-volume production and R&D scenarios.
Ergonomic design: Uniform diffused lighting and reasonable working height reduce operator fatigue and avoid eye damage from glare.
Low total cost: Compared with fully automatic equipment, manual models feature lower initial investment and maintenance cost, with reliable industrial durability.

Typical Application Scenarios

SMT electronics manufacturing: Regular maintenance of solder paste stencils
Precision screen printing: thick film, solar cell and conductive paste printing quality control
R&D labs and prototyping lines
Stencil manufacturing workshops for final quality inspection
Electronic repair and rework stations
Practical Selection & Maintenance Tips

How to Choose

Confirm your maximum stencil size and ensure the machine’s XY travel meets full-coverage demand.
For fine-pitch stencils below 0.4mm, prioritize 200x magnification and 20MP+ resolution.
Choose stainless steel frame and tempered glass structure for longer service life in industrial environments.

Daily Maintenance

Wipe the glass work surface with a lint-free cloth regularly to remove dust and residue.
Lubricate guide rails periodically to keep movement smooth.
Keep optical lenses clean and cover the machine with a dust cover when idle.
Calibrate the graduated scale regularly to ensure measurement accuracy.

Conclusion

The manual type screen stencil inspection machine is a practical and cost-efficient quality control solution for electronics and precision printing industries. Subit focuses on delivering industrial-grade stencil inspection equipment with reliable precision and durable build, helping manufacturers streamline quality control and boost overall production efficiency.
