SMT Stencil Inspection Machine: The Ultimate Guide for Stencil Manufacturers and SMT Factories

Meta Description: Discover how to choose the right SMT stencil inspection machine for your business. Subit provides tailored solutions for stencil manufacturers and SMT factories to reduce defects and boost productivity.
Introduction
In the fast-paced world of Surface Mount Technology (SMT), the quality of your stencil directly determines your PCB soldering yield. Industry statistics show that approximately 30% of SMT printing defects originate from stencil imperfections. As components continue to miniaturize—with 01005 packages and Mini LED technology becoming mainstream—manual inspection is no longer sufficient, with error rates reaching 20-30%.
Subit, a leading SMT equipment manufacturer based in Shenzhen, China, offers specialized stencil inspection solutions designed for both stencil manufacturers and SMT assembly plants. In this comprehensive guide, we’ll break down the two core application scenarios, key features to look for, and how to select the perfect machine for your specific needs.
Why Stencil Quality Is Non-Negotiable in Modern SMT Production
The stencil acts as the "mold" for solder paste deposition, the most critical step in the SMT process. Even minor defects can lead to costly issues downstream:
Solder bridging from oversized or misaligned openings
Insufficient solder from clogged holes or partial blockages
Void formation from rough hole walls or burrs
Component misalignment from positional errors
These defects not only increase rework costs but also damage your brand reputation and lead to production delays. A high-quality stencil inspection machine is your first line of defense against these issues, ensuring consistent quality across every production run.
Two Core Types of SMT Stencil Inspection Machines
Subit recognizes that stencil manufacturers and SMT factories have fundamentally different needs. That’s why we’ve developed two distinct product lines, each optimized for its specific use case.
1. Production-Grade Inspection Machines for Stencil Manufacturers
Core Purpose: Verify 100% compliance with customer GERBER/LMD design files before shipment. These machines serve as the final quality control checkpoint in the stencil manufacturing process, covering raw material inspection, in-process testing, and finished product verification.
Key Features of Subit’s Stencil Manufacturer Solutions
GERBER File Import & Comparison: Automatically generate a theoretical standard model from standard GERBER or LMD files in just 3-5 minutes, enabling rapid changeover between different stencil specifications.
Ultra-High Precision Detection: Achieve ±10μm dimensional accuracy with Gage R&R < 5%, ensuring precise measurement of opening size, area, and positional offset. Our machines can detect even the smallest defects, including extra holes, missing holes, opening deformation, and edge burrs.
Advanced Specialized Testing: Support step stencil thickness measurement and hole wall flatness inspection, ideal for high-end applications like semiconductor packaging.
Optional Tension Measurement: Integrated mechanical high-precision tension meter with ±1N·cm accuracy and 0-70N range to verify stencil tension meets industry standards.
Technical Advantages
Robust Construction: 00-grade marble platform and fully cast gantry structure with natural aging stress relief for long-term stability.
Premium Components: Equipped with British Renishaw linear encoders and German IDS industrial cameras (6.9μm resolution) for reliable, consistent performance.
Full Traceability: Automatically generate detailed inspection reports with defect locations, dimensional deviations, and timestamps, supporting data archiving and customer audit requirements.
Broad Compatibility: Works with stainless steel, nickel alloy, and other stencil materials, with a minimum detectable opening size of 30×30μm—covering consumer electronics, automotive electronics, and semiconductor applications.
2. Process Control Inspection Machines for SMT Factories
Core Purpose: Monitor stencil condition throughout its entire lifecycle without requiring original design files. These machines focus on detecting use-related defects such as clogging, foreign matter, and tension decay, ensuring printing process stability.
Key Features of Subit’s SMT Factory Solutions
No-GERBER Fast Inspection: Use our one-click template learning function to set the initial state of a new stencil as the standard. No professional CAD skills required—line operators can easily operate the machine.
Use-Related Defect Detection:
Identify solder paste residue, dust, and fibers inside openings, as well as partial or full clogs
Inspect for residual burrs and hole wall damage after cleaning to prevent solder bridging and smearing
Regular tension testing to detect tension decay and stencil deformation before they affect print quality
Cleaning Effectiveness Verification: Quickly check stencil cleanliness after ultrasonic or water-based cleaning to validate your cleaning process and prevent cross-contamination.
Technical Advantages
Blazing Fast Inspection: Complete inspection of a standard 650mm×550mm stencil in just 50 seconds, meeting the high-frequency inspection demands of modern SMT lines.
Seamless Line Integration: Compact design allows placement next to stencil cleaning machines or as a standalone unit. Full SECS/GEM protocol support enables easy integration with MES and SPI systems for real-time stencil status monitoring.
Cost-Effective: Simplified GERBER comparison module focuses on the core defects that matter most to SMT factories, delivering exceptional value without compromising performance.

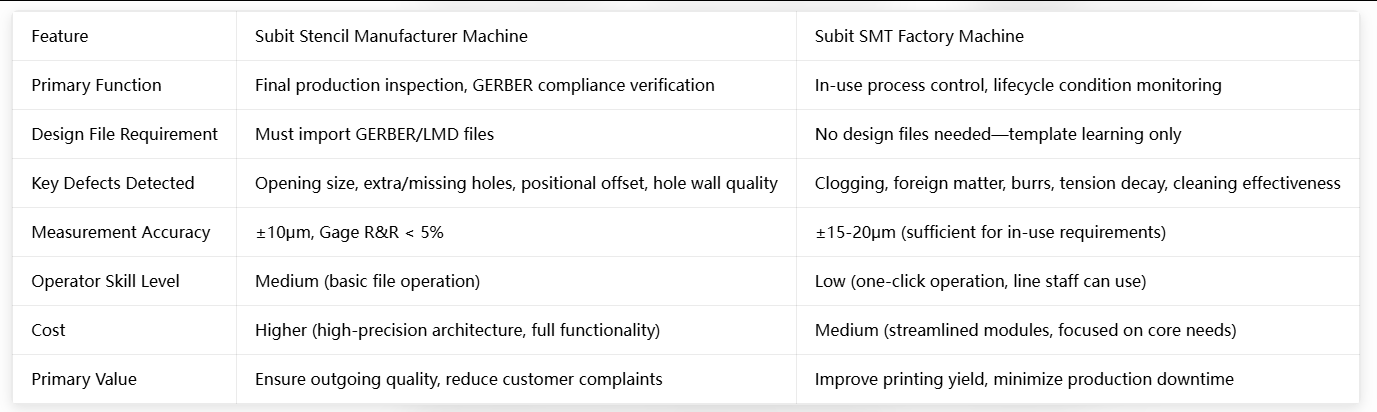

Head-to-Head Comparison: Stencil Manufacturer vs. SMT Factory Machines

Industry Trends: The Future of SMT Stencil Inspection
As SMT technology continues to advance, stencil inspection machines are evolving to meet new challenges. Subit is at the forefront of these innovations:
1. AI-Powered Intelligent Recognition
Our latest generation machines integrate advanced AI vision algorithms that automatically classify defect types (clogging, burrs, etc.) with over 99% accuracy. This significantly reduces manual review time and ensures consistent defect detection across all operators.
2. Data-Driven Manufacturing
Full SECS/GEM protocol support enables seamless data exchange with MES, SPI, and other production systems. This allows for correlation analysis between stencil inspection data and printing yield data, enabling root cause identification and proactive quality control.
3. Multi-Function Integration
To help customers reduce equipment investment costs, Subit is integrating additional functions into our stencil inspection machines, including squeegee inspection and stencil thickness measurement—creating a single, versatile solution for your SMT line.
How to Choose the Right Subit Stencil Inspection Machine
For Stencil Manufacturers
Prioritize high precision and GERBER compatibility
Look for full defect coverage and comprehensive reporting capabilities
Ensure the machine can handle multiple stencil materials and sizes
Consider optional modules like tension measurement for added value
For SMT Factories
Focus on ease of operation and fast inspection speed
Ensure seamless MES integration for real-time data tracking
Prioritize core defect detection (clogging, foreign matter, tension)
Balance cost and functionality to meet your production needs
Conclusion
SMT stencil inspection machines are the unsung heroes of electronic manufacturing, acting as the "quality gatekeepers" for the entire SMT process. Subit understands that one size does not fit all—our specialized solutions for stencil manufacturers and SMT factories are designed to address your unique challenges and help you achieve higher yields, lower costs, and greater customer satisfaction.
With the global SMT stencil inspection equipment market projected to exceed 2.6 billion RMB in 2025, growing at over 14% annually, now is the time to invest in automation to stay competitive. Subit’s cutting-edge technology, reliable performance, and dedicated customer support make us the ideal partner for all your stencil inspection needs.
Ready to upgrade your stencil quality control process? Contact Subit today for a free consultation and customized solution tailored to your specific requirements. Let us help you build a more efficient, more reliable SMT production line.
