Screen Printing Squeegee Blade: The Guide to Precision, Durability & Selection for Electronic

In the intricate world of electronic printing, where precision down to 50μm trace widths defines success or failure, the humble screen printing squeegee blade stands as an unsung hero. This critical component determines ink deposition, edge definition, and overall print quality, making it indispensable for PCB manufacturing, semiconductor packaging, and other high-tech applications. For over a decade, SUBIT Technology has specialized in delivering cutting-edge solutions that optimize this vital element of the printing process, empowering manufacturers to achieve consistent, high-quality results.
Understanding Screen Printing Squeegee Blades: Core Concepts
What is a Screen Printing Squeegee Blade?

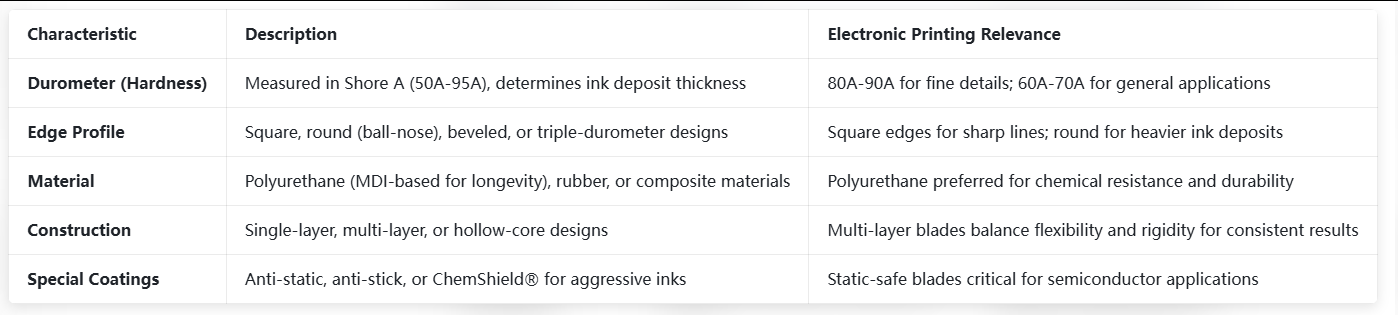

A screen printing squeegee blade is a flexible tool that forces ink through mesh screens onto substrates during the printing process. Composed of materials like polyurethane (the industry standard), neoprene, or natural rubber, these blades vary in hardness (durometer), edge profile, and construction to suit diverse applications. In electronic printing, where precision is non-negotiable, specialized blades with static-dissipative properties and ultra-precise edges are essential to prevent damage to sensitive components.

Types of Screen Printing Squeegee Blades for Electronic Applications
1. Standard Polyurethane Blades
The workhorses of the industry, these blades offer excellent balance of durability, chemical resistance, and flexibility. MDI-based polyester urethanes provide the longest lifespan, making them ideal for high-volume electronic production lines. SUBIT Technology's inspection solutions ensure these blades maintain consistent quality throughout their operational life.
2. Static-Dissipative Blades
Engineered with carbon-fiber cores or conductive additives, these blades eliminate static buildup that can damage sensitive electronic components. Essential for PCB manufacturing and semiconductor packaging, they prevent electrostatic discharge (ESD) while maintaining precise ink control.
3. Precision Edge Blades
Featuring edges ground to 0.1mm tolerance, these specialized blades deliver the sharp definition required for micro-electronic applications, including fine-pitch components and high-density interconnects. SUBIT's Squeegee Blade Inspection Machine ensures these critical dimensions meet exact specifications before they reach production lines.
4. Multi-Layer/Triple-Durometer Blades
Innovative designs combining soft cores with hard edges provide the perfect balance of flexibility and rigidity, adapting to uneven surfaces while maintaining consistent pressure across the screen. These advanced blades are particularly valuable for printing on curved or irregular substrates common in modern electronic devices.
The Critical Role of Squeegee Blade Inspection in Electronic Printing
Why Quality Control Matters
Even minor defects in a squeegee blade—like nicks, uneven edges, or inconsistent hardness—can lead to costly print failures, rework, and production delays in electronic manufacturing. For companies operating at scale, implementing rigorous inspection protocols isn't just good practice; it's essential for maintaining profitability and reputation.
SUBIT Technology's Squeegee Blade Inspection Machine: Setting the Standard
Established in 2014, SUBIT Technology brings decades of electronic manufacturing expertise to designing specialized inspection solutions that address this critical needSUBIT Technology. Our Squeegee Blade Inspection Machine offers:
Automated precision measurement of edge profiles and thickness down to micrometer levels
Durometer mapping to ensure consistent hardness across the entire blade length
Surface defect detection to identify microscopic nicks or imperfections invisible to the human eye
Data logging capabilities for traceability and quality assurance documentation
This state-of-the-art equipment integrates seamlessly with production workflows, helping manufacturers maintain zero-defect printing standards while reducing waste and operational costs.
Selecting the Perfect Squeegee Blade for Electronic Printing Applications
Step-by-Step Selection Guide
Determine Application Requirements:
For fine-pitch PCBs: Choose 85A-90A durometer with square edge profiles
For flexible electronics: Opt for 65A-75A durometer with beveled edges to accommodate substrate flexibility
For high-volume production: Select MDI-based polyurethane blades for extended lifespan
Consider Ink and Substrate Compatibility:
Solvent-based inks require chemical-resistant polyurethane blades
Water-based inks work well with neoprene or special polyurethane formulations
Mesh counts above 230 require harder blades (80A+) for proper ink penetration
Evaluate Machine Compatibility:
Automatic presses demand rigid blades with consistent pressure distribution
Manual applications benefit from more flexible blades for operator control
Implement Regular Inspection Protocols:
Use SUBIT's Squeegee Blade Inspection Machine for scheduled quality checks
Replace blades at predefined intervals (typically 50,000-100,000 impressions) to maintain consistency
Common Mistakes to Avoid
Using incorrect durometer: Too soft blades cause blurred edges; too hard blades damage screens or insufficient ink transfer
Neglecting edge quality: Even minor nicks can ruin high-precision prints
Ignoring static risks: Uncontrolled static discharge can destroy sensitive electronic components
Overlooking blade maintenance: Proper cleaning and storage extend blade life and ensure consistent performance
SUBIT Technology: Empowering Electronic Printing Excellence Since 2014
Established in 2014, SUBIT Technology has emerged as a trusted partner for electronic manufacturers worldwide, combining decades of industry experience with innovative engineering solutionsSUBIT Technology. As a specialized manufacturer of electronic printing machinery and chemical industry equipment, we've dedicated ourselves to solving the unique challenges of this demanding fieldSUBIT Technology.
Our Comprehensive Product Portfolio
Beyond our industry-leading Squeegee Blade Inspection Machine, SUBIT offers a complete ecosystem of solutions to optimize your electronic printing operations:
Stencil Inspection Machine: Ensures flawless stencil quality before printing begins
Planetary Vacuum Defoaming Mixing Machine: Eliminates air bubbles from inks and pastes for consistent results
Screen Stretching Machine: Creates perfectly tensioned screens for uniform printing
Custom Automation Equipment: Tailored solutions to address specific production challengesSUBIT Technology
Each SUBIT machine is designed with four core principles: low energy consumption, easy operation, intelligence, and high efficiency—directly addressing the pain points of modern manufacturersSUBIT Technology.
Technical Strength: The Foundation of Our Excellence
At SUBIT, our competitive advantage lies in our unwavering commitment to quality and innovation:
Experienced Engineering Team: Our technical professionals bring decades of electronic manufacturing expertise to every project
Advanced Manufacturing Capabilities: Equipped with stamping, CNC machining, wire cutting, and precision welding facilities to meet diverse production needsSUBIT Technology
Customization Expertise: We provide tailored solutions to match your exact specifications, from specialized inspection protocols to unique machine configurationsSUBIT Technology
Rigorous Quality Control: Every product undergoes comprehensive testing to ensure reliability and performance
The Future of Screen Printing Squeegee Blades: Innovations Shaping Electronic Manufacturing
As electronic devices become smaller, more complex, and more powerful, the demands on screen printing technology continue to evolve. The future of squeegee blades lies in:
Smart Blades with Embedded Sensors: Real-time monitoring of pressure, wear, and performance
Nanocoatings for Enhanced Durability: Extending blade life while maintaining precision
3D-Printed Custom Profiles: Creating complex edge geometries for specialized applications
AI-Optimized Designs: Leveraging machine learning to create blades tailored to specific materials and processes
SUBIT Technology remains at the forefront of these advancements, continuously refining our inspection solutions to accommodate the next generation of squeegee blade innovations.
Conclusion: Elevate Your Electronic Printing with Precision Squeegee Solutions
The screen printing squeegee blade may be small, but its impact on electronic manufacturing quality and efficiency is enormous. By understanding the critical role of durometer, edge profile, and material selection—and implementing rigorous inspection protocols with tools like SUBIT's Squeegee Blade Inspection Machine—manufacturers can achieve unprecedented levels of precision and consistency.
For over 10 years, SUBIT Technology has empowered electronic printing professionals to overcome their most challenging production hurdles with innovative, reliable solutionsSUBIT Technology. Whether you're seeking to optimize your current processes or explore the cutting edge of printing technology, our team stands ready to deliver the expertise and equipment you need to succeed.
